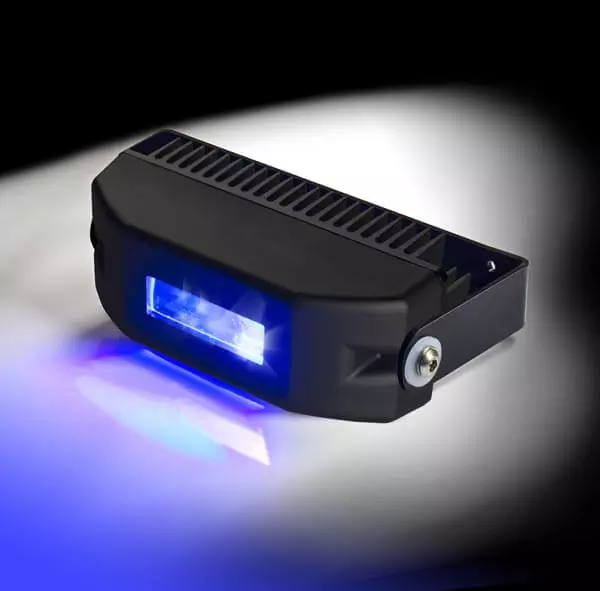

Safety Bar 20 – Forklift Safety Lights

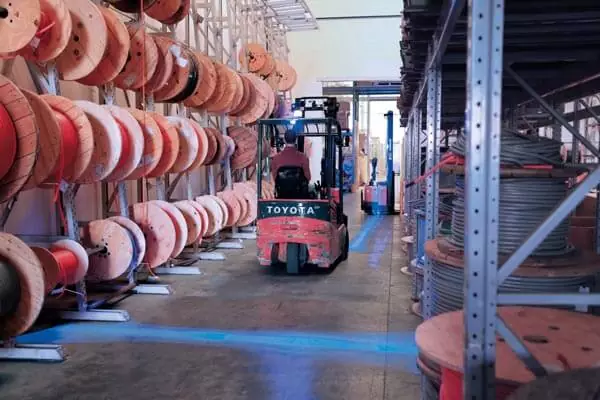

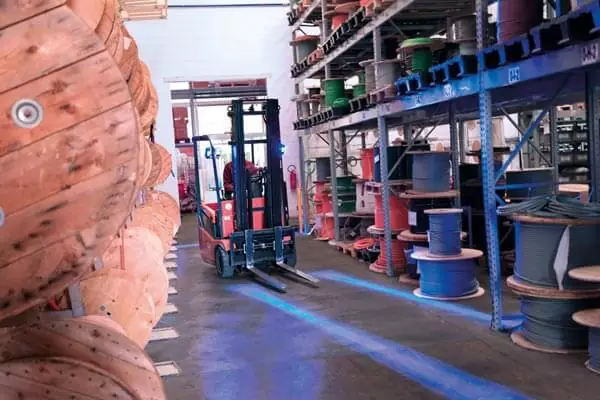

Industrial LED projector designed to ensure the safety lighting on forklifts. This lamp, applied on the forklift, emits a blue or red light beam at a distance of several meters that allows workers to notice the arrival of the vehicle.
The lamp can be powered from 12 to 48 Vdc. The materials used, such as anodized aluminium, stainless steel and Nylon loaded with fiberglass make Safety Bar 20 a long lasting and high quality product. The power consumption of this projector is 20W (RED version) or 24W (BLUE version).
| Safety Bar 20 Blue | Safety Bar 20 Red | |
| Power Supply | From 12 Vdc to 48 Vdc | From 12 Vdc to 48 Vdc |
| Maximum Power Input | 24W | 20W |
| Source | Blue LED | Red LED |
| Projected Figure | Bar | Bar |
| Dominant Wavelength | 460nm | 620nm |
| Operating Temperature | From -30°C to +50°C | From -30°C to +50°C |
| Control | On/Off | On/Off |
| Materials | Nylon loaded with fiberglass and aluminium (structure), Steel (screws), Glass (lenses), Silicone (gaskets) | Nylon loaded with fiberglass and aluminium (structure), Steel (screws), Glass (lenses), Silicone (gaskets) |
| IP Protection Class | IP65 | IP65 |
| IK Protection Class | IK08 | IK08 |
| Photobiological Safety Risk Group | RG1 | RG0 |
| Weight | 0,8 Kg | 0,8 Kg |
| Packaging Dimensions | 180mm (L) x 165mm (W) x 70mm (H) | 180mm (L) x 165mm (W) x 70mm (H) |
| Lamp Dimension | 175mm (L) x 60mm (W) x 100mm (H) | 175mm (L) x 60mm (W) x 100mm (H) |
