Safety 40 LED Spotlight
Industrial LED projector designed for safety lighting of heavy industries such as steel mills, rolling mills and foundries. The SAFE 40 series is especially suitable for high temperature environments, large amount of dust and wherever the safety of the workplaces has to be guaranteed.

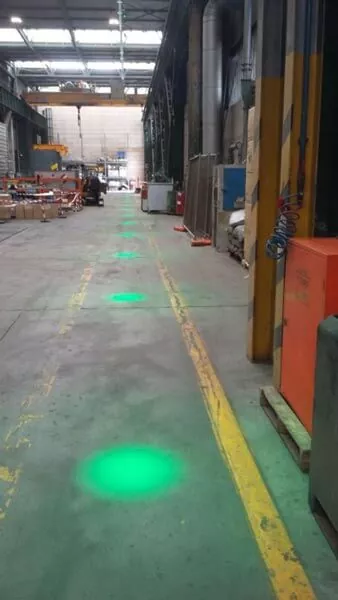

The lamp consists of a heat-sink and a casing in aluminum, silicone gaskets that guarantee the IP64 degree of protection and a tempered glass closure screen. The LED element, coupled with a particular lens, projects a green or red spot, even from heights above 20 meters.
Compared to any other type of signaling systems, such as applying adhesive, this system is clearly visible, even in brightly lighted environments or with surfaces always covered in dust and dirt
Technical Information
| Green Safe 40 | Red Safe 40 | |
| Power Supply | 198-264Vac / 50-60Hz | 198-264Vac / 50-60Hz |
| Maximum Power Input | 40W | 32W |
| Source | N°1 Green LED | N°1 Red LED |
| Projected Figure | Round | Square |
| Image Size at 10mt | Diameter 450 mm | 450 x 450 mm |
| Dominant Wavelength | 525nm | 620nm |
| Operating Temperature | From -30°C To +60°C | From -30°C to +50°C |
| Control | On/Off | On/Off |
| Materials | Anodized aluminum (structure), Stainless steel (screws), Clear tempered glass (screen), Silicone (gaskets) | Anodized aluminum (structure), Stainless steel (screws), Clear tempered glass (screen), Silicone (gaskets) |
| IP Protection Class | IP64 | IP64 |
| IK Protection Class | IK08 | IK08 |
| Photobiological Safety Risk Group | RG1 | RG1 |
| Weight | 5 Kg | 5 Kg |
| Packaging Dimensions | 400mm (L) x 400mm (W) x 400mm (H) | 400mm (L) x 400mm (W) x 400mm (H) |
| Lamp Dimension | 200mm (L) x 200mm (W) x 300mm (H) | 200mm (L) x 200mm (W) x 300mm (H) |
