Mid Safe – Safety Sign Projector

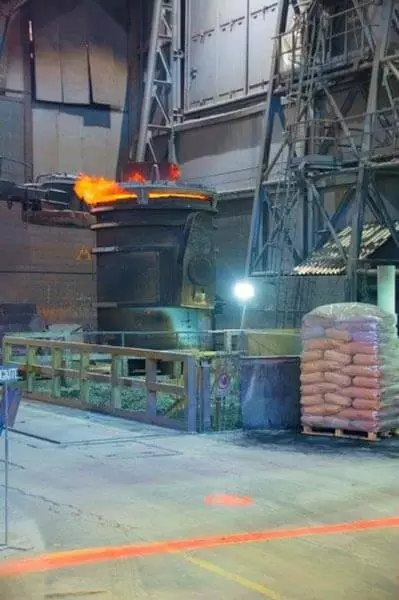

The new LED projectors line MINI SAFE and MID SAFE is designed to ensure the safety of employees in work environments through an endless range of applications that can be achieved thanks to special lens systems that projects special shapes on the floor in green, red, blue and yellow color variants.

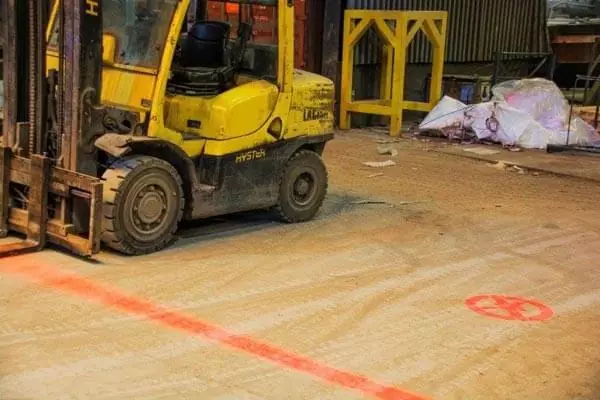

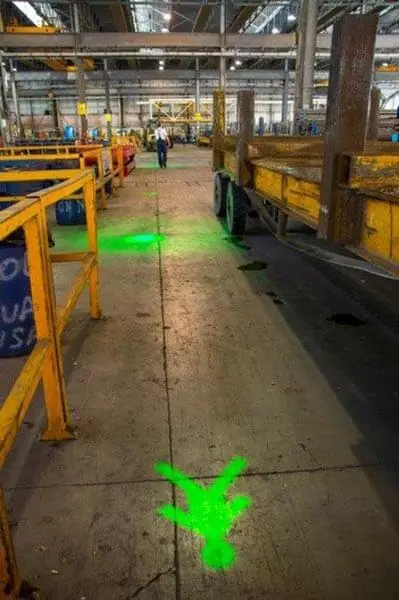

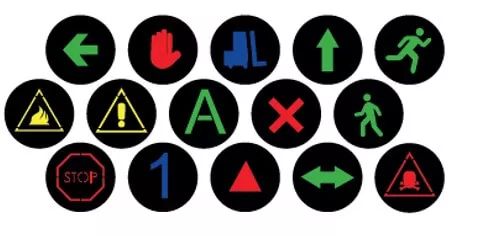

Compared to any other type of signalling system, such as applying adhesive, this system is clearly visible, even in brightly lighted environments or on surfaces always covered in dust and dirt. It’s the ideal product, for example, to report emergency exit directions (Mini Safe Arrows or Mid Safe Arrows) or safe collection points and hazardous areas (Safe Cross). Moreover, with the image of the walking man you can light up a pedestrian path and with the running man you can light up an emergency exit. A lot of standard symbols are available (ask the company for the symbol table) and it’s possible, on request, to customize the symbols The lamp is made with a plastic structure and an aluminum heatsink completed with silicone gaskets which guarantee the IP54 degree of protection.

Category:

Technical Information



Mini Safe Mid Safe
LED Colour Lamp Green, Red, Blue, Yellow
Power Supply 90-305Vac / 50-60Hz
Maximum Power Input 25W
Source N°1 Blue Led, N°1 Yellow LED, N°1 Red Led, N°1 Green Led
Mid Safe Evo Symbol Lenght At 8mt height 470mm
Dominant Wavelength 525nm (green) 620nm (red) 460nm (blue) 580nm (yellow)
Operating Temperature From -40°C To +50°C
Control On/Off
Photobiological Safety Risk Group RG1
Materials Anodized aluminum and PVC (structure),
Painted steel (bracket),
Stainless steel (screws and cable glands),
Glass (lenses),
Silicone (gaskets)
IP Protection Class IP54
Weight 2.5 Kg 3 Kg
Packaging Dimensions 150 mm (L) x 150 mm (W) x 220 mm (H) 150 mm (L) x 150 mm (W) x 300 mm (H)
Lamp Dimension 110 mm (L) x 110 mm (W) x 190 mm (H) 110 mm (L) x 110 mm (W) x 270 mm (H)
Power Supply Dimension 180 mm (L) x 63 mm (W) x 36 mm (H)
