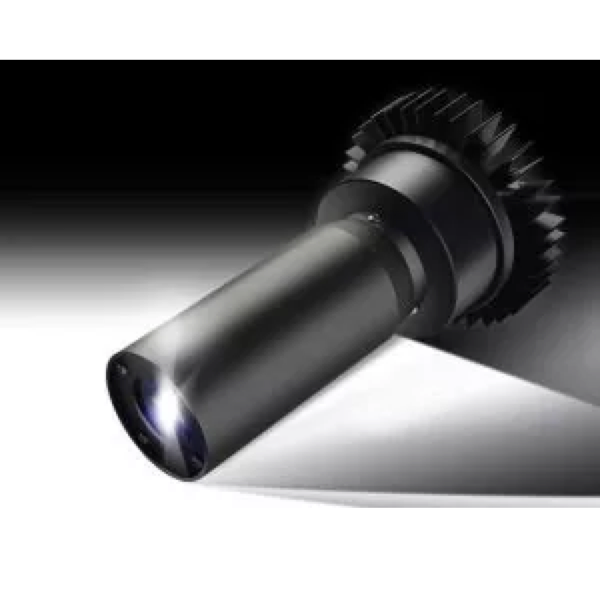

Mid Safe Crosswalk – Crosswalk Safety Light
The new Mini/Mid Safe CROSSWALK LED projector has a special lens system which is designed to project the symbol of the pedestrian crossings from different installation heights (from 3 to 10 meters), each lamp is able to project 3 horizontal bars, available in 4 colours: yellow, green, red or blue.

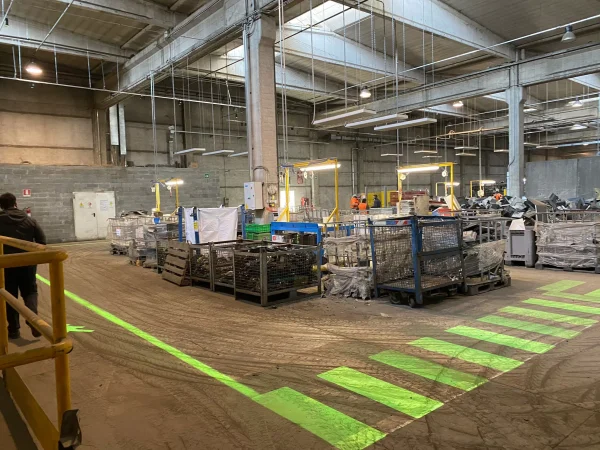

It is the perfect product to highlight pedestrian crossings, making them clearly visible even in conditions of heavy dust or bad surfaces, where the application of adhesive stripes or paint is not effective and short-lasting. Mini/Mid Safe CROSSWALK is the ideal solution to increase safety inside any company, reducing the risk of accidents.
The lamp is made with a plastic structure and an aluminum heatsink completed with silicone gaskets which guarantee the IP54 degree of protection.
Technical Information
| Mini Safe Crosswalk | Mid Safe Crosswalk | |
| Lamp Color | Green | Green |
| Power Supply | 90-305 Vac / 50-60Hz | 90-305 Vac / 50-60Hz |
| Maximum power input | 25 W | 25 W |
| Source | N° 1 GREEN LED | N° 1 GREEN LED |
| Symbol length at 4mt height | 1100mm x 700mm | – |
| Symbol length at 8mt height | – | 1300mmx 860mm |
| Operating Temperature | From -40°C to +50°C | Da -40°C a +50°C |
| Control | On/Off | On/Off |
| Photobiological safety risk group | RG1 | RG1 |
| Materials | Anodixed aluminium and PVC (structure), painted steel (bracket), stainless steel (screws and cable glands), glass (lenses), silicone (gaskets) | Anodixed aluminium and PVC (structure), painted steel (bracket), stainless steel (screws and cable glands), glass (lenses), silicone (gaskets) |
| IP Protection Class | IP54 | IP54 |
| Weight | 2,5 Kg | 3 Kg |
| Packaging dimensions | 220 x 150 x 150 mm | 300 x 150 x 150 mm |
| Lamp dimension | 210 x 140 x 140 mm | 255 x 140 x 140 mm |
| Power supply dimension | 180 mm (L) x 63 mm (W) x 36 mm (H) | 180 mm (L) x 63 mm (W) x 36 mm (H) |
